Slitting for Multilayer Laminates and Flexible Packaging Rolls

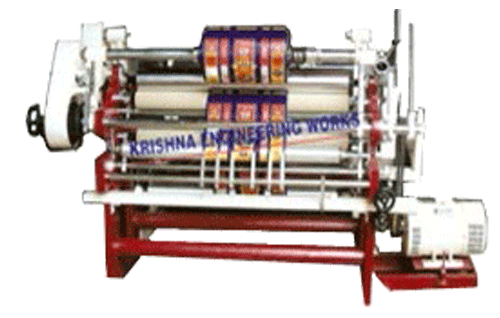

The Laminated Roll Slitter Rewinder Machine from KEW International is engineered specifically for slitting and rewinding laminated films, multi-layer barrier films, and paper-foil-laminate combinations used widely in flexible packaging applications. Designed for high-speed, precision slitting, our machines ensure superior edge quality, accurate tension control, and flawless rewind rolls—even at industrial-scale output.
With robust build quality, user-friendly controls, and customized automation options, this machine supports 24/7 operations in packaging, lamination, and converting industries across the globe.
🔧 Key Features:
- ✔️ Handles 2-layer and 3-layer laminated structures
- ✔️ High-speed operation up to 500 m/min
- ✔️ Web tension control with load cell feedback
- ✔️ Slitting types: Razor / Shear / Score (Customizable)
- ✔️ Dual rewinding with differential shafts (optional)
- ✔️ Touchscreen HMI with PLC automation
- ✔️ Pneumatic brake system for consistent unwind tension
- ✔️ Web guiding system with ultrasonic sensor
- ✔️ Static eliminator and trim collection system
🌐 Built for Export-Grade Quality
KEW International supplies high-performance laminated roll slitters to 30+ countries worldwide, offering CE-compliant systems, precision engineering, and excellent after-sales support. Designed using CAD systems and tested under real-load conditions, our machines ensure low maintenance, maximum uptime, and consistent output across shifts.
📞 Contact Us for Tailor-Made Laminated Roll Slitter Rewinders
Tell us your roll specs and production volume—our engineers will design a machine suited for your exact need.
Technical Overview
📐 Technical Specifications:
| Parameter | Specification |
|---|---|
| Web Width | 500 mm to 2200 mm |
| Slitting Width | Min. 25 mm |
| Laminate Thickness | 15 – 300 microns |
| Unwind Diameter | Up to 1200 mm |
| Rewind Diameter | Up to 800 mm |
| Slitting Method | Razor / Shear / Score |
| Max Machine Speed | Up to 500 m/min |
| Drive System | AC vector drive with synchronization |
| Control System | PLC with Touchscreen HMI |
Application
🏭 Applications:
- Food & Beverage Packaging
- Pharma Pouch Making
- Snack Packaging Laminates
- Liquid Pouch Laminate Slitting
- Laminated Rolls for Sachets & Wrappers
🎯 Suitable Materials:
- PET/PE, PET/AL/PE, BOPP/PE Laminates
- Foil-Based Laminate Rolls
- Printed Laminated Rolls
- Paper-Film Laminates
- Multi-layer Barrier Films
- Metallized Films with PE or BOPP
🔄 Optional Add-ons:
- Laser Core Positioning
- Fully Automatic Tension Control
- Turret Rewinding System
- Edge Trim Suction Blower
- Slit Roll Labeling & Counting System
- Roll Lifting System for Heavy Unwinds
